This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in Massachusetts. Please note: This equipment is currently in storage and not located at its original location.

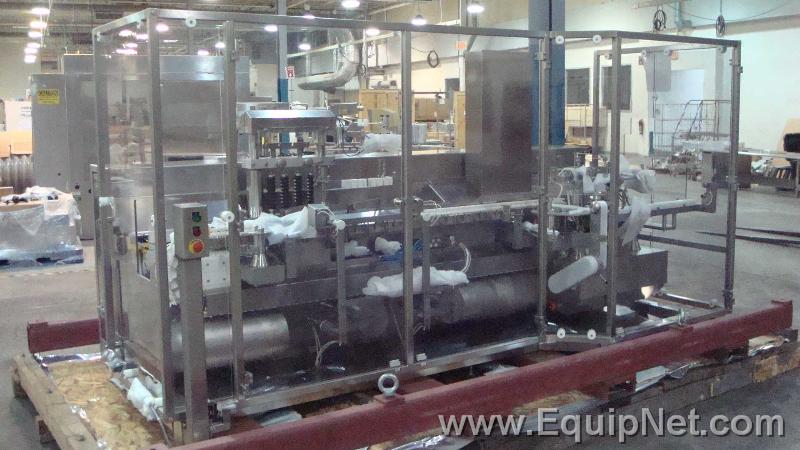

This equipment was manufactured in July of 2003 and never used. The machines were in the original crates from Bosch. The filler includes an RIV 1040 Gas Exchanger, Serial # 8111357073, and a Bosch 48" stainless steel unscrambling table, Model 48" Disc, serial number 8111342415. The machine comes equipped with multiple change parts. See the attached PDF file for a list of the spare parts.
The introduction of the FLM filler series, designed by a global team of Bosch product management and engineering staff, represents a major improvement in performance, product filling accuracy and superior aseptic cleanliness for the pharmaceutical industry. The machine is available as a stand-alone unit for clean room filling, RABS, or with a barrier isolator. The machine features a fill range of 0.25 ml up to 500 ml for greater flexibility with an output of up to 600 units per minute.
GMP-Compliance
Balcony construction, vertical machine plate, strict separation of the production and drive sections
Slim machine design (reach depth 600 mm) allows good accessibility and all maintenance work to be done from one side, very small aseptic area
Flexible machine design allows any type of installation: detached sterile room installation, RABS (Restricted Area Barrier System), in-wall installation or isolator technology
Wash down cleaning possible
Smooth vial handling, containers are carried (no sliding movement), central regulation, few format parts
Containers stand freely in the LF stream
Automatic format change, reproducible production conditions by storable filling programs
Stopper sorting with centrifugal sorting system, vertical stoppering wheel
Touch screen panel
Teleservice by modem available
Filling system: rotary valve piston pumps or rolling diaphragm pumps, a time pressure filling system or a mass flow filling system
Additional equipment available: e.g. CIP/SIP systems (Cleaning-in-Place, Sterilizing-in-Place), in-process-control, gassing system.
The FLM has been presented with the "2003 Design News Omron Global Innovation Award."
Machine Data
Details
Container sizes: Vials and bottles made of glass or plastic up to 500 ml, self-stable and non-self-stable.
Diameter 14 - 86 mm
Height 30 - 180 mm
Product: Liquid pharmaceuticals (from aqueous solutions to suspensions)
Closures: Rubber stoppers (silicone or Teflon coated) in either plug or freeze-dry versions
Filling range: up to 500 ml
Output: 4-point: max. 200 / min.
6-point: max. 300 / min.
8-point: max. 400 / min.
16-point: max. 600 / min.
|
