You are making an offer on a Wiese Pendulum Bucket Elevator System, KAM Stainless Steel Incline Conveyor, Stainless Steel Silo. This item is surplus to the ongoing operations of a manufacturing facility in Georgia . This and other lots from this location are now available because the facility needs to make room for manufacturing capacity.
This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. Wiese Pendulum Bucket Elevator System, KAM Stainless Steel Incline Conveyor, Stainless Steel Silo

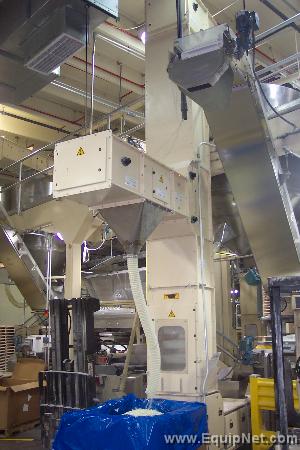

The pendulum bucket conveyor provides multiple discharge points and extremely individual layouts
During conveying, the buckets always hang with the open side towards the top avoiding product spillage regardless of whether conveying is horizontal, vertical, upwards or downwards. The casing always stays clean insidebucket volume:2,8bucket pitch:165bucket dimns., capacities and speed on attached documentpreviously conveying pellet gum and is rated at ~ 750 kilos/HR.These conveyors are a very special design, because the have an extra switchable discharge in the vertical leg (see the attached drawings). Furthermore they have large removable side panels in the complete foot leg for easy access and cleaning. Clean out drawers underneath the foot leg and the drive unit are included. It is possible to change the basic c-shape into a Z-shape easily by turning the head and exchange some guiding sheets inside. Wiese would assist at any time. The biggest advantage of WIESE pendulum bucket conveyors is the stretch free rubber chain KAMFLEX stainless steel incline conveyor, ~ 22" wide X 12' long, mounted on top of siloapprox. 235 cu. ft. stainless steel storage silo, ~7' 2" diameter X 6' deep with a cone bottom, 24" manway, silo is mounted on weigh cells (no electrical or scale)<Syntron style vibrating pan underneath silo, ~8" wide X 3' long, stainless steel constructionall conveyor motors includedall conveyor motors includedtwo systems available, listed seperatlyWiese print on attached PDF
|
